IXGH60N60C2 Datasheet - IXYS Corporation

IXGH60N60C2 High Speed IGBT

www.DataSheet4U.com Advance Technical Data HiPerFASTTM IGBT C2-Class High Speed IGBTs IXGH 60N60C2 IXGT 60N60C2 VCES IC25 VCE(sat) tfi typ = 600 V = 75 A = 2.5 V = 35 ns Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MΩ Continuous Transient TC = 25°C (limited by leads) TC = 110°C TC = 25°C, 1 ms VGE = 15 V, TVJ = 125°C, RG = 10 Ω Clamped inductive load @ ≤ 600V TC = 25°C Maximum Ratings 600 600 ±20 ±30.

IXGH60N60C2 Features

* z z Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Md Weight Mounting torque (TO-247) 1.13/10Nm/lb.in. TO-247 AD TO-268 6 4 g g z z Very high frequency IGBT Square RBSOA High current handling capability MOS Gate turn-on - drive simplicity Applications z Symbol Te

IXGH60N60C2_IXYSCorporation.pdf

Preview of IXGH60N60C2 PDF

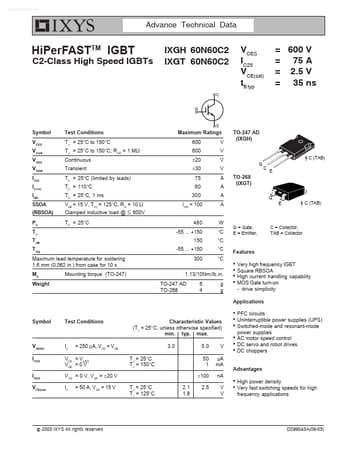

IXGH60N60C2 Datasheet Preview Page 2 IXGH60N60C2 Datasheet Preview Page 3
