IXGH60N30C3 Datasheet - IXYS

IXGH60N30C3 High Speed IGBT

Advance Technical Information GenX3TM 300V IGBT IXGH60N30C3 High Speed IGBTs for 50-150kHz switching V= CES IC110 = V ≤ CE(sat) t = fi typ 300V 60A 1.8V 70ns Symbol VCES VCGR VGES VGEM IC25 I C110 ICM IA EAS SSOA (RBSOA) PC T J TJM Tstg T L TSOLD M d Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1MΩ Continuous Transient TC = 25°C (Limited by leads) T C = 110°C (chip capability) TC = 25°C, 1ms TC = 25°C TC = 25°C VGE= 15V, TVJ = 125°C, RG = 5Ω Clamped induct.

IXGH60N30C3 Features

* z High Frequency IGBT z Square RBSOA z High avalanche capability z Drive simplicity with MOS Gate Turn-On z High current handling capability Applications z PFC Circuits z PDP Systems z Switched-mode and resonant-mode converters and inverters z SMPS z AC motor speed control z DC servo and robot drive

IXGH60N30C3 Datasheet (47.10 KB)

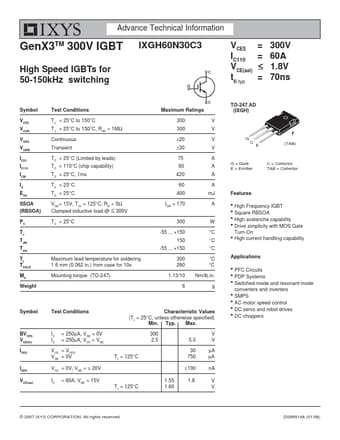

Preview of IXGH60N30C3 PDF

Datasheet Details

Part number:

IXGH60N30C3

Manufacturer:

IXYS

File Size:

47.10 KB

Description:

High speed igbt.
