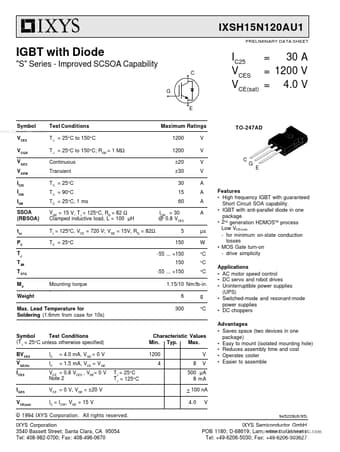

IXSH15N120AU1 Datasheet, Igbt, IXYS Corporation

IXSH15N120AU1 Features

• Igbt
• High frequency IGBT with guaranteed Short Circuit SOA capability.
• IGBT with anti-parallel diode in one package
• 2nd generation HDMOSTM process Low VCE(sat)

PDF File Details

Part number:

IXSH15N120AU1

Manufacturer:

IXYS Corporation

File Size:

61.50kb

Download:

📄 Datasheet

Description:

Igbt.

IXSH15N120AU1 Application

• Applications
• AC motor speed control
• DC servo and robot drives
• Uninterruptible power supplies (UPS)
• Switched-
