IXSM30N60 Datasheet, Igbt, IXYS Corporation

IXSM30N60 Features

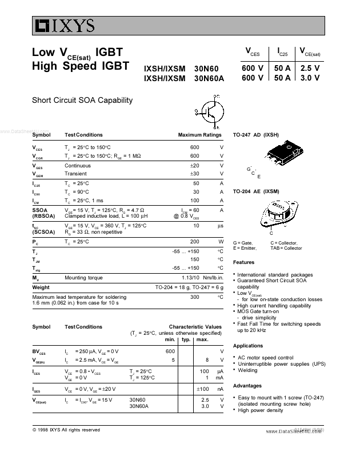

• Igbt l l Mounting torque 1.13/10 Nm/lb.in. TO-204 = 18 g, TO-247 = 6 g 300 °C Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s l l l Symbol Test Conditions

PDF File Details

Part number:

IXSM30N60

Manufacturer:

IXYS Corporation

File Size:

217.81kb

Download:

📄 Datasheet

Description:

Low vce(sat) igbt.

IXSM30N60 Application

• Applications l l l VCE = 0.8 • VCES VGE = 0 V VCE = 0 V, VGE = ±20 V IC = IC90, VGE = 15 V AC motor speed control Uninterruptible power supplies (
