IXSM20N60A High Speed IGBT

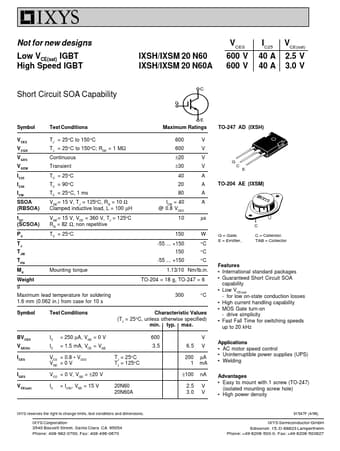

Not for new designs Low VCE(sat) IGBT High Speed IGBT IXSH/IXSM 20 N60 IXSH/IXSM 20 N60A VCES 600 V 600 V IC25 40 A 40 A VCE(sat) 2.5 V 3.0 V Short Circuit SOA Capability Symbol Test Conditions Maximum Ratings VCES V CGR VGES VGEM IC25 IC90 I CM SSOA (RBSOA) TJ = 25°C to 150°C T J = 25°C to 150°C; R GE = 1 MΩ Continuous Transient TC = 25°C TC = 90°C T C = 25°C, 1 ms VGE= 15 V, TJ = 125°C, RG = 10 Ω Clamped inductive load, L = 100 µH tSC (SCSOA) P C TJ TJM Tstg Md Weight.

IXSM20N60A Features

* q International standard packages q Guaranteed Short Circuit SOA capability q Low V CE(sat) - for low on-state conduction losses q High current handling capability q MOS Gate turn-on - drive simplicity q Fast Fall Time for switching speeds up to 20 kHz Applications q AC motor speed control q Uninter
