IXSM30N60A Datasheet, Igbt, IXYS Corporation

IXSM30N60A Features

• Igbt l l Mounting torque 1.13/10 Nm/lb.in. TO-204 = 18 g, TO-247 = 6 g 300 °C Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s l l l Symbol Test Conditions

PDF File Details

Part number:

IXSM30N60A

Manufacturer:

IXYS Corporation

File Size:

217.81kb

Download:

📄 Datasheet

Description:

Low vce(sat) igbt.

IXSM30N60A Application

• Applications l l l VCE = 0.8 • VCES VGE = 0 V VCE = 0 V, VGE = ±20 V IC = IC90, VGE = 15 V AC motor speed control Uninterruptible power supplies (

TAGS

IXSM30N60A

IXYS Corporation

📁 Related Datasheet

IXSM30N60 - Low VCE(sat) IGBT (IXYS Corporation)

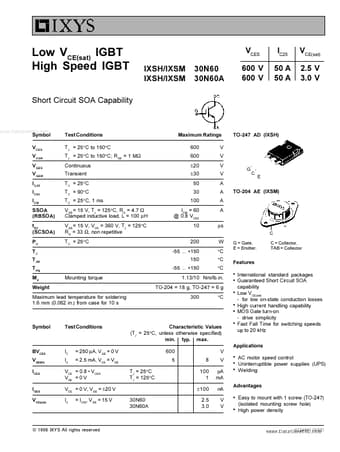

Low VCE(sat) IGBT High Speed IGBT Short Circuit SOA Capability VCES IXSH/IXSM IXSH/IXSM 30N60 30N60A 600 V 600 V IC25 50 A 50 A VCE(sat) 2.5 V 3.0 .
