IXSM40N60 Datasheet - IXYS Corporation

IXSM40N60 - Low VCE(sat) IGBT

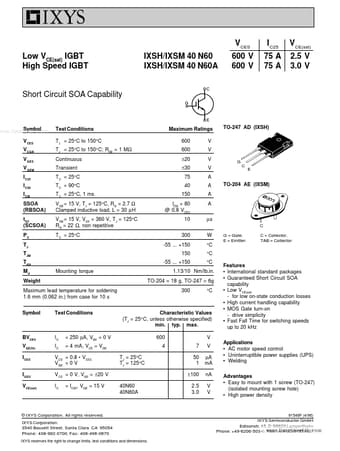

VCES Low VCE(sat) IGBT High Speed IGBT IXSH/IXSM 40 N60 IXSH/IXSM 40 N60A 600 V 600 V I C25 75 A 75 A VCE(sat) 2.5 V 3.0 V Short Circuit SOA Capability Symbol www.DataSheet4U.com V CES V CGR V GES V GEM I C25 I C90 I CM SSOA (RBSOA) tSC (SCSOA) PC TJ TJM Tstg Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150° C; RGE = 1 MΩ Continuous Transient T C = 25°C T C = 90°C T C = 25°C, 1 ms V GE = 15 V, TJ = 125°C, RG = 2.7 Ω Clamped inductive load, L = 30 µ H V GE = 15 V, VCE = 360 V, T

IXSM40N60 Features

* International standard packages Guaranteed Short Circuit SOA capability Low VCE(sat) - for low on-state conduction losses High current handling capability MOS Gate turn-on - drive simplicity Fast Fall Time for switching speeds up to 20 kHz q q q q q q BVCES VGE(th) I CES I GES VCE(sat) IC IC = 25
