IXST35N120B

IGBT

IXST35N120B Features

* l Mounting torque (TO-247) 1.13/10 Nm/lb.in. 300 l Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Weight TO-247 TO-268 Epitaxial Silicon drift region - fast switching - small tail current MOS gate turn-on for drive simplicity 6 4 Applications Symbol Test Condit

IXST35N120B Datasheet (82.37 KB)

Preview of IXST35N120B PDF

Datasheet Details

Part number:

IXST35N120B

Manufacturer:

IXYS Corporation

File Size:

82.37 KB

Description:

Igbt.
IGBT IXSH 35N120B IXST 35N120B "S" Series - Improved SCSOA Capability IC25 = 70 A VCES = 1200 V VCE(sat) = 3.6 V Symbol VCES VCGR VGES VGEM IC25 I.

📁 Related Datasheet

IXST30N60B - High Speed IGBT (IXYS Corporation)
High Speed IGBT IXSH/IXST 30N60B IXSH/IXST 30N60C Short Circuit SOA Capability VCES ICES tfi 600 V 2.0 V 140 ns 600 V 2.5 V 70 ns Symbol VCES VCG.

IXST30N60B2D1 - High Speed IGBT with Diode (IXYS)
.. High Speed IGBT with Diode Short Circuit SOA Capability Preliminary Data Sheet IXSH 30N60B2D1 IXST 30N60B2D1 VCES = 600 V I C25.

IXST30N60BD1 - High Speed IGBT (IXYS Corporation)
High Speed IGBT with Diode IXSH 30N60BD1 IXSK 30N60BD1 IXST 30N60BD1 VCES IC25 VCE(sat) Short Circuit SOA Capability tfi = 600 V = 55 A = 2.0 V =.

IXST30N60C - High Speed IGBT (IXYS Corporation)
High Speed IGBT IXSH/IXST 30N60B IXSH/IXST 30N60C Short Circuit SOA Capability VCES ICES tfi 600 V 2.0 V 140 ns 600 V 2.5 V 70 ns Symbol VCES VCG.

IXST30N60CD1 - Short Circuit SOA Capability (IXYS Corporation)
High Speed IGBT with Diode IXSH 30 N60CD1 IXSK 30 N60CD1 IXST 30 N60CD1 Short Circuit SOA Capability Preliminary data VCES IC25 VCE(sat) t fi TO-24.

IXST15N120B - High Voltage IGBT (IXYS)
HIGH Voltage IGBT IXSH 15N120B IXST 15N120B S Series - Improved SCSOA Capability IC25 VCES VCE(sat) = 30 A = 1200 V = 3.4 V Preliminary data S.

IXST15N120BD1 - Improved SCSOA Capability (IXYS Corporation)
IXSH 15N120BD1 I = 30 A C25 IXST 15N120BD1 V = 1200 V CES S Series - Improved SCSOA Capability VCE(sat) = 3.4 V HIGH Voltage IGBT with Diode Preli.

IXST24N60B - High Speed IGBT (IXYS)
High Speed IGBT Short Circuit SOA Capability IXSH IXST IXSH IXST 24N60B 24N60B 24N60BD1 24N60BD1 VCES IC25 VCE(sat) tfi typ = 600 V = 48 A = 2.5 V.

TAGS

IXST35N120B IGBT IXYS Corporation

Image Gallery

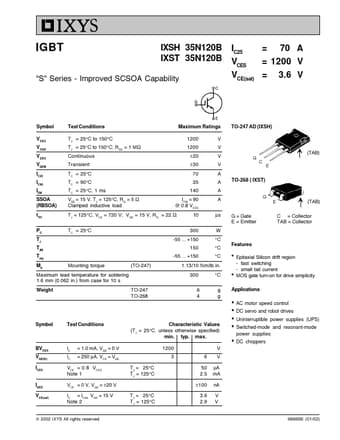

IXST35N120B Datasheet Preview Page 2
