IXTP130N10T - Power MOSFET

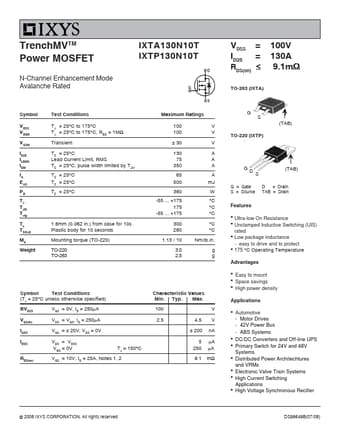

TrenchMVTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTA130N10T IXTP130N10T VDSS = ID25 = RDS(on) ≤ 100V 130A 9.1mΩ TO-263 (IXTA) Symbol VDSS VDGR VGSM ID25 ILRMS IDM IA EAS PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGS = 1MΩ Transient TC = 25°C Lead Current Limit, RMS TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C 1.6mm (0.062 in.) from case for 10s Plastic body for 10 seconds Mounting torque (TO-220) TO-22

IXTP130N10T Features

* z Ultra-low On Resistance z Unclamped Inductive Switching (UIS) rated z Low package inductance - easy to drive and to protect z 175 °C Operating Temperature Advantages z Easy to mount z Space savings z High power density Applications z Automotive - Motor Drives - 42V Power Bus - ABS Systems z DC/DC
