CPC1301

Optocoupler

CPC1301 Features

* 5000Vrms Input/Output Isolation

* 350VP Breakdown Voltage

* Small 4-Pin Package

* Surface Mount Tape & Reel Version Available Applications

* Telecom Switching

* Tip/Ring Circuits

* Hook Switch

* Modem Switching (Laptop, Notebook, Pock

CPC1301 General Description

The CPC1301 is a unidirectional input optocoupler with a high-voltage Darlington output. Light output from the highly efficient infrared LED activates the optically coupled silicon NPN photo-Darlington output transistor. The input LED and the output transistor are separated by a 5000Vrms isolation b.

CPC1301 Datasheet (124.44 KB)

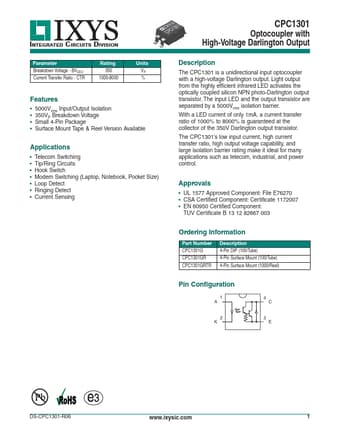

Preview of CPC1301 PDF

Datasheet Details

Part number:

CPC1301

Manufacturer:

IXYS

File Size:

124.44 KB

Description:

Optocoupler.
