CPC1301G Optocoupler

The CPC1301 is a unidirectional input optocoupler with a high-voltage Darlington output. Light output from the highly efficient infrared LED activates the optically coupled silicon NPN photo-Darlington output transistor. The input LED and the output transistor are separated by a 5000Vrms isolation b.

CPC1301G Features

* 5000Vrms Input/Output Isolation

* 350VP Breakdown Voltage

* Small 4-Pin Package

* Surface Mount Tape & Reel Version Available Applications

* Telecom Switching

* Tip/Ring Circuits

* Hook Switch

* Modem Switching (Laptop, Notebook, Pock

CPC1301-IXYS.pdf

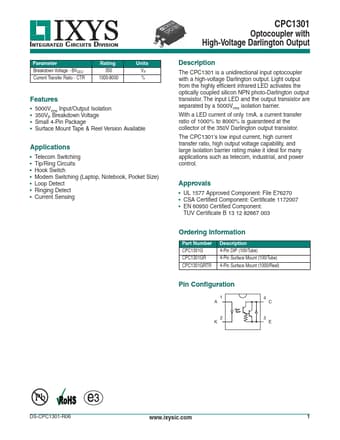

CPC1301G Datasheet Preview — This datasheet PDF includes multiple part numbers: CPC1301G, CPC1301. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CPC1301G, CPC1301

Manufacturer:

IXYS

File Size:

124.44 KB

Description:

Optocoupler.

Note:

This datasheet PDF includes multiple part numbers: CPC1301G, CPC1301.
Please refer to the document for exact specifications by model.
