CPC1302G, CPC1302 Datasheet - IXYS

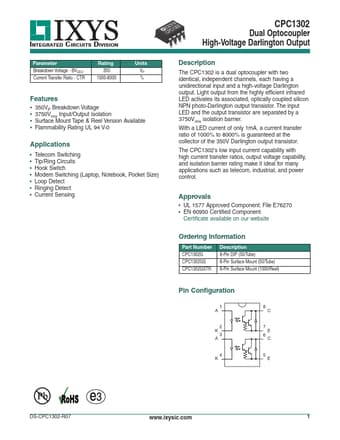

CPC1302G Dual Optocoupler

The CPC1302 is a dual optocoupler with two identical, independent channels, each having a unidirectional input and a high-voltage Darlington output. Light output from the highly efficient infrared LED activates its associated, optically coupled silicon NPN photo-Darlington output transistor. The inp.

CPC1302G Features

* 350VP Breakdown Voltage

* 3750Vrms Input/Output Isolation

* Surface Mount Tape & Reel Version Available

* Flammability Rating UL 94 V-0 Applications

* Telecom Switching

* Tip/Ring Circuits

* Hook Switch

* Modem Switching (Laptop, Note

CPC1302-IXYS.pdf

This datasheet PDF includes multiple part numbers: CPC1302G, CPC1302. Please refer to the document for exact specifications by model.
CPC1302G Datasheet Preview Page 2 CPC1302G Datasheet Preview Page 3

Datasheet Details

Part number:

CPC1302G, CPC1302

Manufacturer:

IXYS

File Size:

146.52 KB

Description:

Dual optocoupler.

Note:

This datasheet PDF includes multiple part numbers: CPC1302G, CPC1302.
Please refer to the document for exact specifications by model.
