CPC1303

Optocoupler

IXYS

CPC1303 Features

* 5000Vrms Input/Output Isolation

* Low Drive Power Requirements

* High Reliability

* Arc-Free With No Snubbing Circuits

* No EMI/RFI Generation

* Small 4-pin Package

* Flammability Rating UL 94 V-0 Applications

* Sensor Circuitry

CPC1303 General Description

The CPC1303 is a unidirectional input optocoupler with a single-transistor output, which uses optically coupled technology to provide an enhanced 5000Vrms isolation barrier between the input and the output. The optically coupled output is controlled by a highly efficient infrared LED. This optocoupl.

CPC1303 Datasheet (146.61 KB)

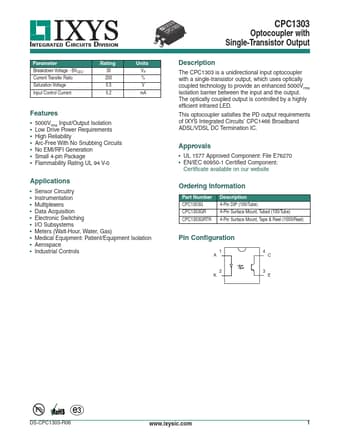

CPC1303 Datasheet Preview — Preview of CPC1303 PDF

Datasheet Details

Part number:

CPC1303

Manufacturer:

IXYS

File Size:

146.61 KB

Description:

Optocoupler.
INTEGRATED CIRCUITS DIVISION Parameter Breakdown Voltage - BVCEO Current Transfer Ratio Saturation Voltage Input Control Current Rating 30 200 0.5 0.
