CPC1302 Dual Optocoupler

IXYS

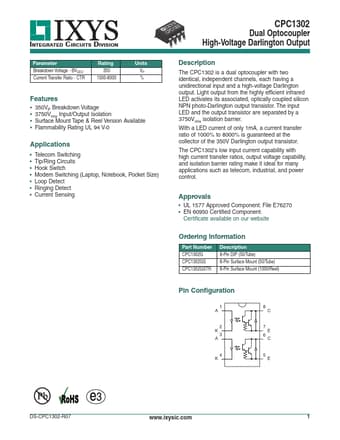

Datasheet Preview Page 1

Description

INTEGRATED CIRCUITS DIVISION Parameter Breakdown Voltage - BVCEO Current Transfer Ratio - CTR Rating 350 1000-8000 Units VP % .
The CPC1302 is a dual optocoupler with two identical, independent channels, each having a unidirectional input and a high-voltage Darlington output.

📥 Download Datasheet

CPC1302 Datasheet Preview — Preview of CPC1302 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Specifications

Part number: CPC1302
Manufacturer: IXYS
File Size: 146.52 KB
Datasheet: CPC1302-IXYS.pdf
Description: Dual Optocoupler

Features

* 350VP Breakdown Voltage
* 3750Vrms Input/Output Isolation
* Surface Mount Tape & Reel Version Available

Applications

* Telecom Switching
* Tip/Ring Circuits
* Hook Switch
* Modem Switching (Laptop, Notebook, Pocket Size)
* Loop Detect
* Ringing Detect
