DSEI8-06AS Fast Recovery Epitaxial Diode

IXYS

Description

FRED Fast Recovery Epitaxial Diode Single Diode Part number DSEI8-06AS Marking on Product: DSEI8-06AS 3 2/4 1 = not connected DSEI8-06AS VRRM = .

📥 Download Datasheet

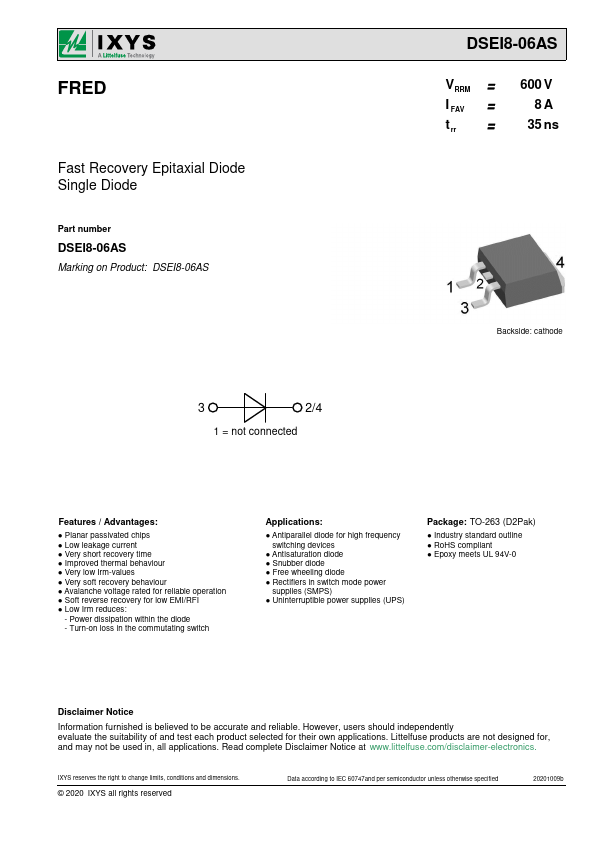

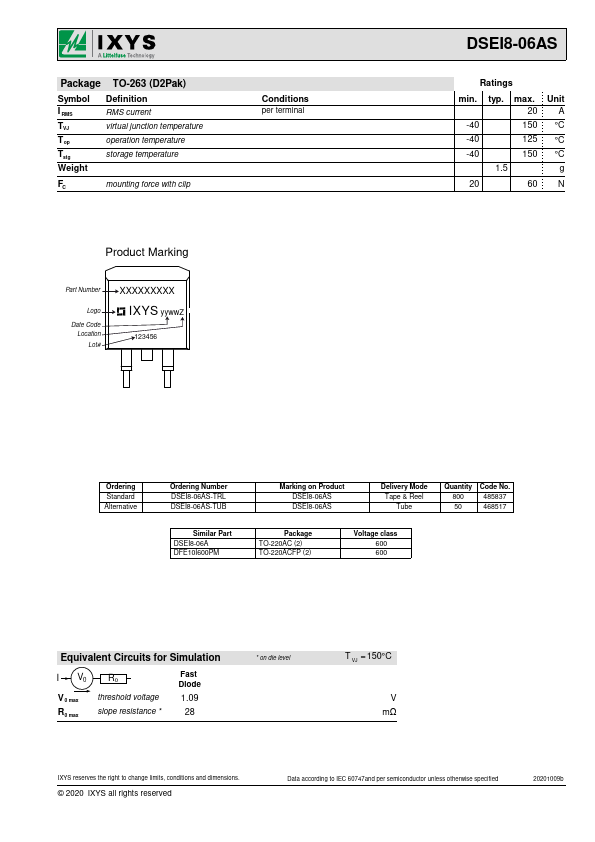

DSEI8-06AS Datasheet Preview — Preview of DSEI8-06AS PDF

Datasheet Specifications

Part number: DSEI8-06AS
Manufacturer: IXYS
File Size: 135.99 KB
Datasheet: DSEI8-06AS-IXYS.pdf
Description: Fast Recovery Epitaxial Diode

Features

* / Advantages:
* Planar passivated chips
* Low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI
* Lo

Applications

* Antiparallel diode for high frequency switching devices
* Antisaturation diode
* Snubber diode
* Free wheeling diode
* Rectifiers in switch mode power supplies (SMPS)
* Uninterruptible power supplies (UPS) Package: TO-263 (D2Pak)
* Industry standard outline
* RoHS
