IXBOD2-11, IXBOD2 Datasheet - IXYS

IXBOD2-11, IXBOD2, Breakover Diode

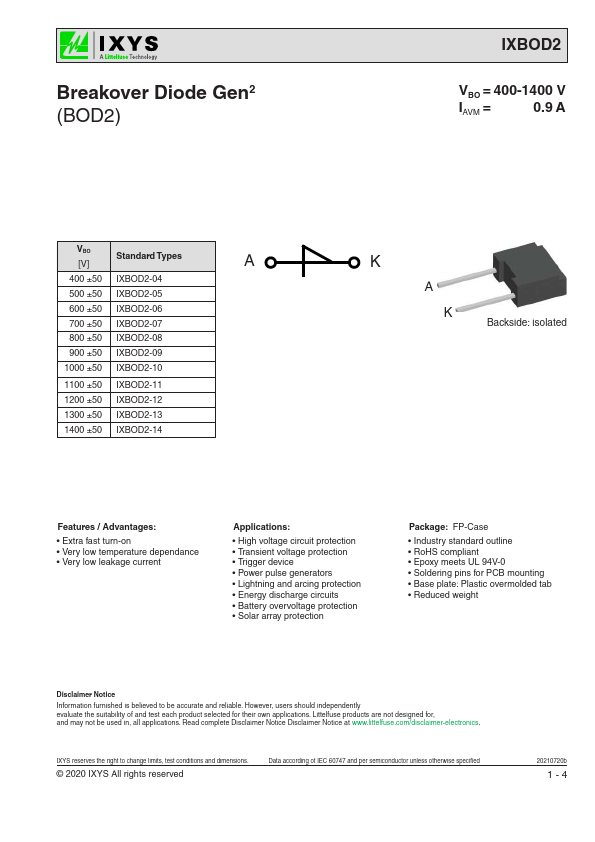

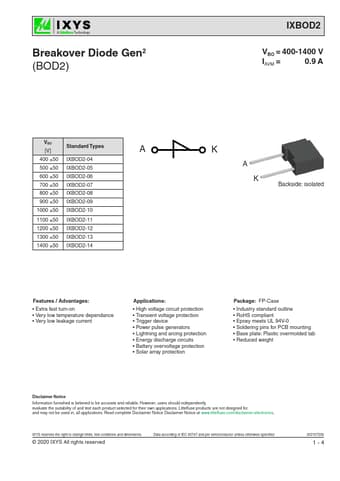

Breakover Diode Gen2 (BOD2) IXBOD2 VBO = 400-1400 V IAVM = 0.9 A VBO Standard Types [V] A 400 ±50 IXBOD2-04 500 ±50 IXBOD2-05 600 ±50 IXBOD.

datasheet Preview Page 1 from Datasheet4u.com

IXBOD2-IXYS.pdf

IXBOD2-11 Datasheet Preview — This datasheet PDF includes multiple part numbers: IXBOD2-11, IXBOD2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXBOD2-11, IXBOD2

Manufacturer:

IXYS

File Size:

161.60 KB

Description:

Breakover Diode

Note:

This datasheet PDF includes multiple part numbers: IXBOD2-11, IXBOD2.
Please refer to the document for exact specifications by model.

Features

* / Advantages:
* Extra fast turn-on
* Very low temperature dependance

Applications

* High voltage circuit protection
* Transient voltage protection
* Trigger device
* Power pulse generators
* Lightning and arcing protection
* Energy discharge circuits
* Battery overvoltage protection
* Solar array protection Package
