IXBH15N160, IXBH15N140 Datasheet - IXYS Corporation

IXBH15N160 - High Voltage BIMOSFET Monolithic Bipolar MOS Transistor

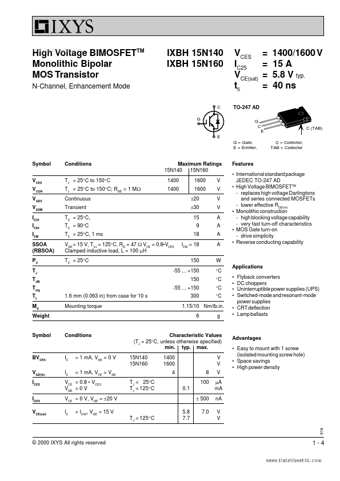

www.DataSheet4U.com High Voltage BIMOSFETTM Monolithic Bipolar MOS Transistor IXBH 15N140 IXBH 15N160 N-Channel, Enhancement Mode C G VCES IC25 VCE(sat) tfi TO-247 AD = = = = 1400/1600 V 15 A 5.8 V typ.

40 ns G C E E G = Gate, E = Emitter, C = Collector, TAB = Collector C (TAB) Symbol VCES VCGR VGES VGEM IC25 IC90 ICM SSOA (RBSOA) PC TJ TJM Tstg TL Md Weight Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MW Continuous Transient TC = 25°C, TC = 90°C TC = 25°C, 1 ms Maximum Ra

IXBH15N160 Features

* International standard package JEDEC TO-247 AD

* High Voltage BIMOSFETTM - replaces high voltage Darlingtons and series connected MOSFETs - lower effective RDS(on)

* Monolithic construction - high blocking voltage capability - very fast turn-off characteristics

* MO

IXBH15N140_IXYSCorporation.pdf

This datasheet PDF includes multiple part numbers: IXBH15N160, IXBH15N140. Please refer to the document for exact specifications by model.
IXBH15N160 Datasheet Preview Page 2 IXBH15N160 Datasheet Preview Page 3

Datasheet Details

Part number:

IXBH15N160, IXBH15N140

Manufacturer:

IXYS Corporation

File Size:

97.14 KB

Description:

High voltage bimosfet monolithic bipolar mos transistor.

Note:

This datasheet PDF includes multiple part numbers: IXBH15N160, IXBH15N140.
Please refer to the document for exact specifications by model.
