* z High blocking voltage z International standard packages z Low conduction losses Advantages z Low gate drive requirement z High power density Applications: z Switched-mode and resonant-mode power supplies z Uninterruptible power supplies (UPS) z Laser generator z Capacitor discharge circuit z AC sw
IXBH42N170 Datasheet (177.41 KB)
IXBH42N170
IXYS Corporation
177.41 KB
Monolithic bipolar mos transistor.

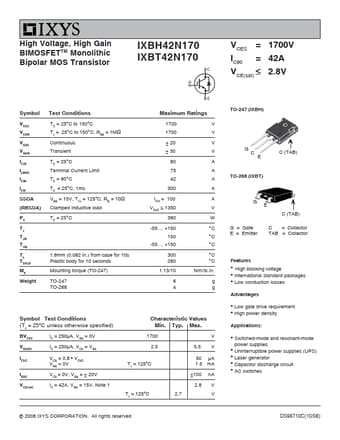

High Voltage, High Gain BIMOSFETTM Monolithic Bipolar MOS Transistor
IXBH42N170 IXBT42N170
VCES = IC90 = VCE(sat) ≤
1700V 42A 2.8V
Symbol
VCES VCG.
