* International standard package JEDEC TO-247 AD
* High Voltage BIMOSFETTM - replaces high voltage Darlingtons and series connected MOSFETs - lower effective RDS(on)
* Monolithic construction - high blocking voltage capability - very fast turn-off characteristics
* MO

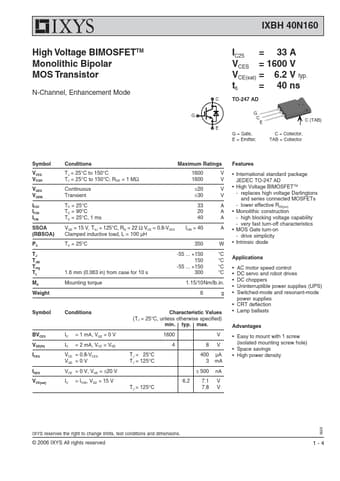

IXBH40N160 Datasheet (129.25 KB)
IXBH40N160
IXYS
129.25 KB
Monolithic bipolar mos transistor.
IXBH 40N160
High Voltage BIMOSFETTM Monolithic Bipolar MOS Transistor
N-Channel, Enhancement Mode
IC25 = 33 A VCES = 1600 V VCE(sat) = 6.2 V typ. tf.
📁 Related Datasheet
IXBH40N140 - High Voltage BIMOSFET Monolithic Bipolar MOS Transistor
(IXYS Corporation)
..
High Voltage BIMOSFETTM Monolithic Bipolar MOS Transistor
N-Channel, Enhancement Mode
IXBH 40N140 IXBH 40N160
VCES IC25 VCE(sat.
