* International standard package JEDEC TO-247 AD
* High Voltage BIMOSFETTM - replaces high voltage Darlingtons and series connected MOSFETs - lower effective RDS(on)
* Monolithic construction - high blocking voltage capability - very fast turn-off characteristics
* MO

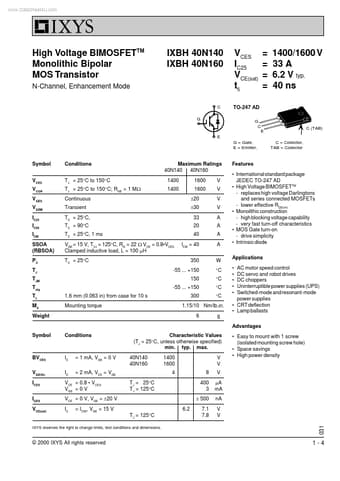

IXBH40N140 Datasheet (89.90 KB)
IXBH40N140
IXYS Corporation
89.90 KB
High voltage bimosfet monolithic bipolar mos transistor.
www.DataSheet4U.com
High Voltage BIMOSFETTM Monolithic Bipolar MOS Transistor
N-Channel, Enhancement Mode
IXBH 40N140 IXBH 40N160
VCES IC25 VCE(sat.
📁 Related Datasheet
IXBH40N160 - Monolithic Bipolar MOS Transistor
(IXYS)
IXBH 40N160
High Voltage BIMOSFETTM Monolithic Bipolar MOS Transistor
N-Channel, Enhancement Mode
IC25 = 33 A VCES = 1600 V VCE(sat) = 6.2 V typ. tf.
