IXFH36N60X3 Power MOSFET

IXYS

IXFH36N60X3 Description

X3-Class HiPerFETTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXFH36N60X3 D G S VDSS = ID25 =  RDS(on) 600V 36A 90m TO-247 (IXFH) .

IXFH36N60X3 Features

* International Standard Package
* Low R and Q DS(ON) G
* Avalanche Rated
* Low Package Inductance Advantages
* High Power Density
* Easy to Mount

IXFH36N60X3 Applications

* Switch-Mode and Resonant-Mode Power Supplies
* DC-DC Converters
* PFC Circuits
* AC and DC Motor Drives
* Robotics and Servo Controls ©2021 Littelfuse, Inc. DS101029B(04/21) Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) gfs VDS = 10V, ID = 0.5

📥 Download Datasheet

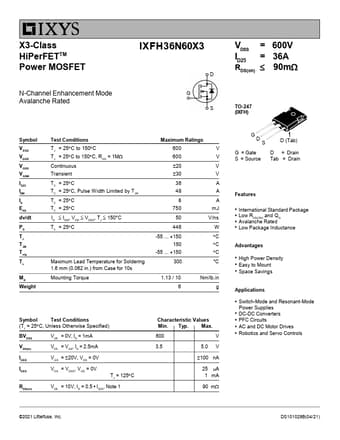

IXFH36N60X3 Datasheet Preview — Preview of IXFH36N60X3 PDF

Datasheet Details

Part number: IXFH36N60X3
Manufacturer: IXYS
File Size: 596.53 KB
Datasheet: IXFH36N60X3-IXYS.pdf
Description: Power MOSFET
