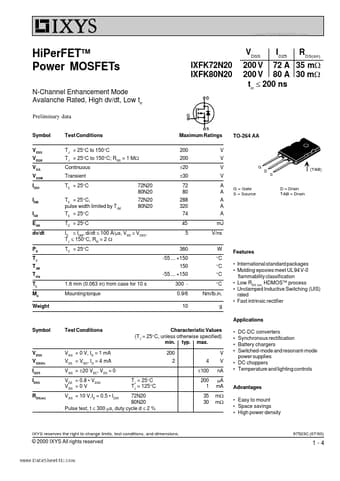

Part number: IXFK72N20
Manufacturer: IXYS
File Size: 123.89KB
Download: 📄 Datasheet
Description: Power MOSFETs
.
* International standard packages
* Molding epoxies meet UL 94 V-0 flammability classification
* Low RDS (on) HDMOSTM process
* Unclamped Inductive Switch.
Symbol Test Conditions Characteristic Values (TJ = 25°C, unless otherwise specified) min. typ. max. 200 2 4 ±100 TJ = 25.
