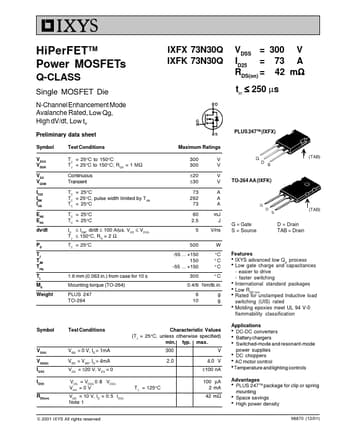

Part number: IXFK73N30Q
Manufacturer: IXYS Corporation
File Size: 98.32KB
Download: 📄 Datasheet
Description: Power MOSFET
l IXYS advanced low Qg process l Low gate charge and capacitances - easier to drive - faster switching l International standard packages l Low RDS (on) l Rated for unclam.
l DC-DC converters l Battery chargers l Switched-mode and resonant-mode power supplies l DC choppers l AC motor control .
