IXFV22N60PS, IXFV22N60P Datasheet - IXYS

IXFV22N60PS Power MOSFETs

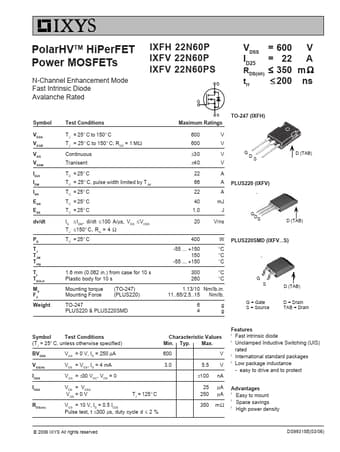

PolarHVTM HiPerFET Power MOSFETs N-Channel Enhancement Mode Fast Intrinsic Diode Avalanche Rated IXFH 22N60P IXFV 22N60P IXFV 22N60PS VDSS = 600 V ID25 = 22 A RDS(on) ≤ 350 m Ω trr ≤ 200 ns Symbol VDSS VDGR VGS VGSM ID25 IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL TSOLD FMCd Weight Test Conditions TJ = 25° C to 150° C TJ = 25° C to 150° C; RGS = 1 MΩ Continuous Tranisent TC = 25° C TC = 25° C, pulse width limited by TJM TC = 25° C TC = 25° C TC = 25° C IS ≤IDM, di/dt ≤100 A/µs, VDD ≤VDSS TJ ≤150.

IXFV22N60PS Features

* l Fast intrinsic diode l Unclamped Inductive Switching (UIS) rated l International standard packages l Low package inductance - easy to drive and to protect Advantages l Easy to mount l Space savings l High power density © 2006 IXYS All rights reserved DS99315E(03/06) IXFH 22N60P IXFV22N60P IXFV

IXFV22N60P-IXYS.pdf

This datasheet PDF includes multiple part numbers: IXFV22N60PS, IXFV22N60P. Please refer to the document for exact specifications by model.
IXFV22N60PS Datasheet Preview Page 2 IXFV22N60PS Datasheet Preview Page 3

Datasheet Details

Part number:

IXFV22N60PS, IXFV22N60P

Manufacturer:

IXYS

File Size:

287.06 KB

Description:

Power mosfets.

Note:

This datasheet PDF includes multiple part numbers: IXFV22N60PS, IXFV22N60P.
Please refer to the document for exact specifications by model.
