IXFV110N10P, IXFV110N10PS Datasheet - IXYS

IXFV110N10P PolarHT HiPerFET Power MOSFET

PolarHTTM HiPerFET Power MOSFET N-Channel Enhancement Mode Fast Intrinsic Diode Avalanche Rated Preliminary Data Sheet Symbol VDSS VDGR VGSS VGSM ID25 ID(RMS) IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL Md FC Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C; RGS = 1 MΩ Continuous Transient IXFH 110N10P IXFV 110N10P IXFV 110N10PS VDSS ID25 RDS(on) = 100 V = 110 A = 15 mΩ www.DataSheet4U.com TO-247 (IXFH) Maximum Ratings 100 100 ± 20 ± 30 110 75 250 60 40 1.0 10 480 -55 +175 175 -55 .

IXFV110N10P Features

* z Fast intrinsic diode z International standard packages z Unclamped Inductive Switching (UIS) rated z Low package inductance - easy to drive and to protect VGS = 10 V, ID = 0.5 ID25 Pulse test, t ≤ 300 µs, duty cycle d ≤ 2 % Advantages z Easy to mount z Space savings z High power density © 2005

IXFV110N10PS_IXYS.pdf

This datasheet PDF includes multiple part numbers: IXFV110N10P, IXFV110N10PS. Please refer to the document for exact specifications by model.

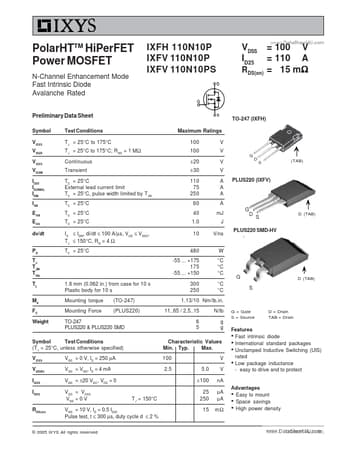

IXFV110N10P Datasheet Preview Page 2 IXFV110N10P Datasheet Preview Page 3

Datasheet Details

Part number:

IXFV110N10P, IXFV110N10PS

Manufacturer:

IXYS

File Size:

184.04 KB

Description:

Polarht hiperfet power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IXFV110N10P, IXFV110N10PS.
Please refer to the document for exact specifications by model.
