IXFV12N80PS Power MOSFET

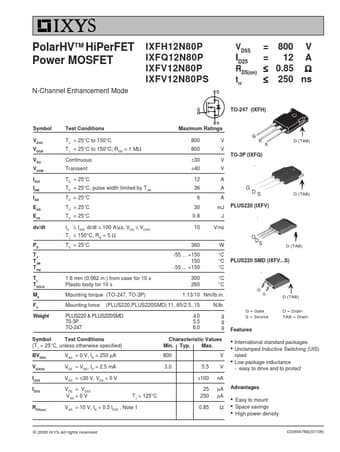

PolarHVTM HiPerFET Power MOSFET N-Channel Enhancement Mode IXFH12N80P IXFQ12N80P IXFV12N80P IXFV12N80PS VDSS = 800 V ID25 = 12 A ≤RDS(on) 0.85 Ω trr ≤ 250 ns TO-247 (IXFH) Symbol Test Conditions Maximum Ratings V DSS VDGR V GS VGSM ID25 IDM IAR E AR EAS T J = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Tranisent TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C T C = 25°C TC = 25°C 800 V 800 V TO-3P (IXFQ) ±30 V ±40 V 12 A 36 A 6A G DS 30 mJ PLUS220 (IXF.

IXFV12N80PS Features

* D (TAB) D = Drain TAB = Drain Symbol Test Conditions (TJ = 25°C, unless otherwise specified) BV DSS V GS = 0 V, I D = 250 μA VGS(th) VDS = VGS, ID = 2.5 mA Characteristic Values Min. Typ. Max. 800 V 3.0 5.5 V z International standard packages z Unclamped Inductive Switching (UIS) ra
