IXFX32N100P, IXFK32N100P Datasheet - IXYS

IXFX32N100P - Power MOSFET

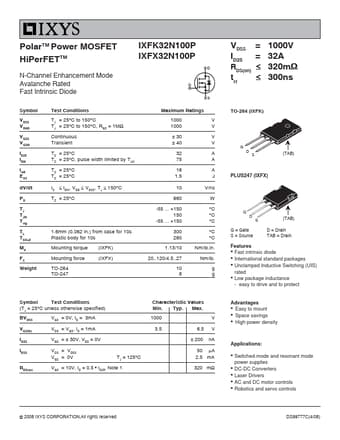

PolarTM Power MOSFET HiPerFETTM N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode IXFK32N100P IXFX32N100P Symbol VDSS VDGR VGSS VGSM ID25 IDM IAR EAS dV/dt PD TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C TC = 25°C 1.6mm (0.062 in.) from case for 10s Plastic body for 10s Mounting torque (IXFK) Mounting f.

IXFX32N100P Features

* z Fast intrinsic diode z International standard packages z Unclamped Inductive Switching (UIS) rated z Low package inductance - easy to drive and to protect Advantages z Easy to mount z Space savings z High power density Applications: z Switched-mode and resonant mode power supplies z DC-DC Conver
