IXFX32N90P Power MOSFET

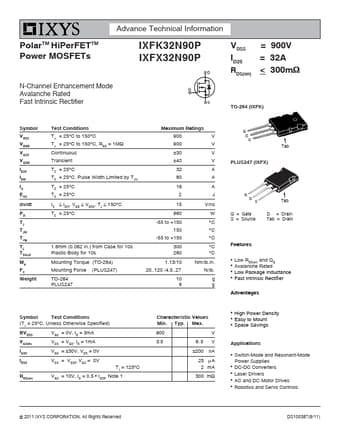

Advance Technical Information PolarTM HiPerFETTM Power MOSFETs N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Rectifier IXFK32N90P IXFX32N90P VDSS ID25 RDS(on) = 900V = 32A < 300mΩ TO-264 (IXFK) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C TC = 25°C 1.6m.

IXFX32N90P Features

* z Low RDS(on) and QG z Avalanche Rated z Low Package Inductance z Fast Intrinsic Rectifier Advantages Symbol Test Conditions (TJ = 25°C, Unless Otherwise Specified) BVDSS VGS = 0V, ID = 3mA VGS(th) VDS = VGS, ID = 1mA IGSS VGS = ±30V, VDS = 0V IDSS VDS = VDSS, VGS = 0V TJ = 125°C RDS(on)
