* miniBLOC, with Aluminium Nitride Isolation
* International Standard Package
* Isolation Voltage 2500V~
* High Current Handling Capability Advantages
* High Power Density
* Low Gate Drive Requirement Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) BVCES

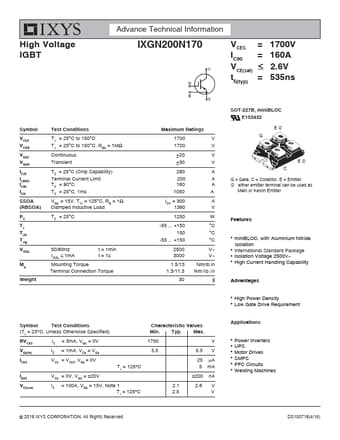

IXGN200N170 Datasheet (207.49 KB)
IXGN200N170
IXYS
207.49 KB
High voltage igbt.
High Voltage IGBT
Advance Technical Information
IXGN200N170
VCES = 1700V
IC90 = 160A
V CE(sat)
2.6V
tfi(typ) = 535ns
E
Symbol
VCES VCGR.
