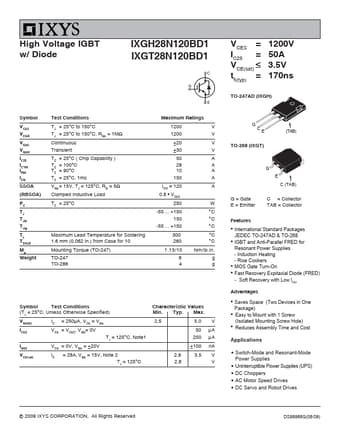

IXGT28N120BD1 Datasheet, Igbt, IXYS

IXGT28N120BD1 Features

• Igbt z International Standard Packages JEDEC TO-247AD & TO-268 z IGBT and Anti-Parallel FRED for Resonant Power Supplies - Induction Heating - Rice Cookers z MOS Gate Turn-On z Fast Recovery

PDF File Details

Part number:

IXGT28N120BD1

Manufacturer:

IXYS

File Size:

191.41kb

Download:

📄 Datasheet

Description:

High voltage igbt.

IXGT28N120BD1 Application

• Applications
• Switch-Mode and Resonant-Mode Power Supplies
• Uninterruptible Power Supplies (UPS)
• DC Choppers
• A
