IXTF02N450 High Voltage Power MOSFET

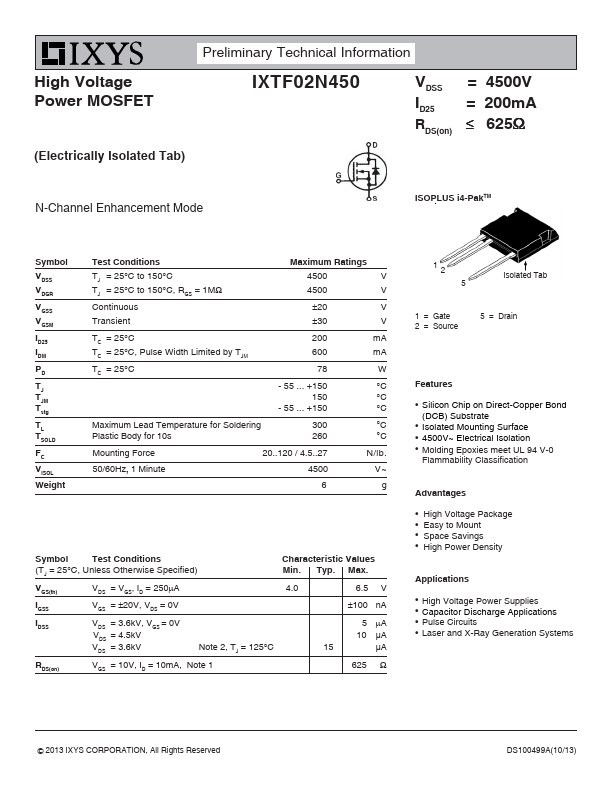

Preliminary Technical Information High Voltage Power MOSFET IXTF02N450 VDSS I D25 RDS(on) = 4500V = 200mA  625 (Electrically Isolated Tab) N-Channel Enhancement Mode ISOPLUS i4-PakTM Symbol VDSS VDGR VGSS VGSM ID25 IDM PD TJ TJM Tstg TL TSOLD FC VISOL Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient Maximum Ratings 4500 V 4500 V 20 V 30 V TC = 25C TC = 25C, Pulse Width Limited by TJM 200 mA 600 mA TC = 25C 78 W - 55 .

IXTF02N450 Features

* Silicon Chip on Direct-Copper Bond (DCB) Substrate

* Isolated Mounting Surface

* 4500V~ Electrical Isolation

* Molding Epoxies meet UL 94 V-0 Flammability Classification Advantages

* High Voltage Package

* Easy to Mount

* Space Savings

* High Power Density Applicati

IXTF02N450 Datasheet (164.67 KB)

IXTF02N450 Datasheet Preview — Preview of IXTF02N450 PDF

Datasheet Details

Part number:

IXTF02N450

Manufacturer:

IXYS

File Size:

164.67 KB

Description:

High voltage power mosfet.
