* Designed for Linear Operation
* International Standard Packages
* Avalanche Rated
* Guaranteed FBSOA at 75C Advantages
* Easy to Mount
* Space Savings
* High Power Density Applications
* Solid State Circuit Breakers
* Soft Start Controls
* Linear Amplifiers

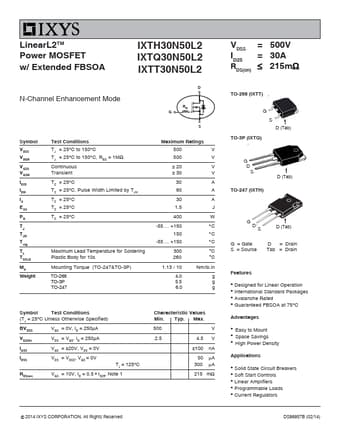

IXTH30N50L2 Datasheet (153.57 KB)
IXTH30N50L2
IXYS
153.57 KB
Power mosfet.
LinearL2TM Power MOSFET w/ Extended FBSOA
IXTH30N50L2 IXTQ30N50L2 IXTT30N50L2
N-Channel Enhancement Mode
D O DD
R Gi
G O ww
O
S
Symbol
VDSS VDGR
V.
