IXTH35N30 Power MOSFET

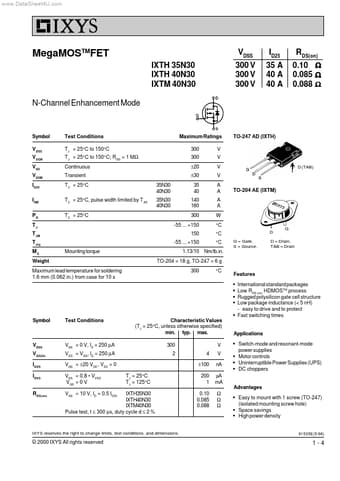

www.DataSheet4U.com MegaMOSTMFET IXTH 35N30 IXTH 40N30 IXTM 40N30 N-Channel Enhancement Mode VDSS 300 V 300 V 300 V ID25 35 A 40 A 40 A RDS(on) 0.10 Ω 0.085 Ω 0.088 Ω Symbol VDSS VDGR VGS VGSM ID25 IDM PD TJ TJM T stg Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C 35N30 40N30 35N30 40N30 Maximum Ratings 300 300 ±20 ±30 35 40 140 160 300 -55 +150 150 -55 +150 V V V V A A A A W °C °.

IXTH35N30 Features

* l l l l Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s l International standard packages Low RDS (on) HDMOSTM process Rugged polysilicon gate cell structure Low package inductance (< 5 nH) - easy to drive and to protect Fast switching times Symbol Test Conditions
