IXTI76N25T, IXTP76N25T Power MOSFET

IXYS

IXTI76N25T Description

TrenchTM Power MOSFET N-Channel Enhancement Mode IXTA76N25T IXTP76N25T IXTQ76N25T IXTH76N25T VDSS = ID25 = RDS(on)  250V 76A 44m Typical Avalanc.

IXTI76N25T Features

* Avalanche Rated
* High Current Handling Capability
* Fast Intrinsic Rectifier
* Low RDS(on) Advantages
* Easy to Mount
* Space Savings

IXTI76N25T Applications

* DC-DC Converters
* Battery Chargers
* Switch-Mode and Resonant-Mode Power Supplies
* DC Choppers
* AC Motor Drives
* Uninterruptible Power Supplies
* High Speed Power Switching Applications © 2015 IXYS CORPORATION, All Rights Reserved DS99663G(11/15) Symbol Test Con

📥 Download Datasheet

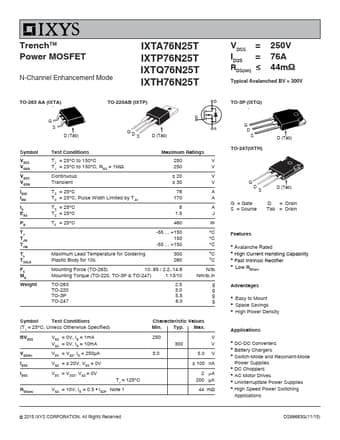

IXTI76N25T Datasheet Preview — This datasheet PDF includes multiple part numbers: IXTI76N25T, IXTP76N25T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: IXTI76N25T, IXTP76N25T
Manufacturer: IXYS
File Size: 286.18 KB
Datasheet: IXTP76N25T_IXYS.pdf
Description: Power MOSFET
Note: This datasheet PDF includes multiple part numbers: IXTI76N25T, IXTP76N25T.
Please refer to the document for exact specifications by model.
