IXTP06N120P Power MOSFET

PolarTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTA06N120P IXTP06N120P Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dV/dt PD TJ TJM Tstg TL TSOLD FC Md Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient Maximum Ratings 1200 V 1200 V 30 V 40 V TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C IS  IDM, VDD  VDSS, TJ  150C TC = 25C 0.6 1.2 0.6 50 10 42 -55 +150 150 -55 +150 A A A mJ V/ns W C C C M.

IXTP06N120P Features

* International Standard Packages

* Low QG

* Avalanche Rated

* Low Package Inductance

* Fast Intrinsic Rectifier Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* DC-DC Converters

* Switch-Mode and Resonant-Mode Power Supplies

IXTA06N120P-IXYS.pdf

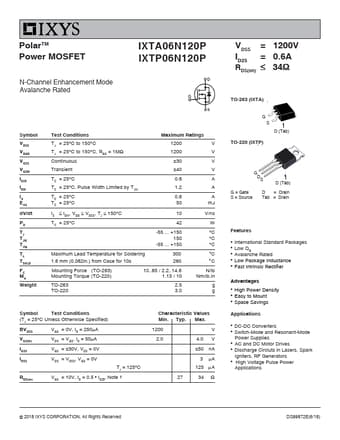

IXTP06N120P Datasheet Preview — This datasheet PDF includes multiple part numbers: IXTP06N120P, IXTA06N120P. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXTP06N120P, IXTA06N120P

Manufacturer:

IXYS

File Size:

270.69 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IXTP06N120P, IXTA06N120P.
Please refer to the document for exact specifications by model.
