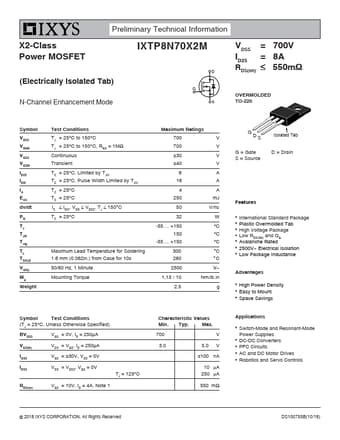

IXTP8N70X2M Datasheet, Mosfet, IXYS

IXTP8N70X2M Features

• Mosfet
• International Standard Package
• Plastic Overmolded Tab
• High Voltage Package
• Low RDS(ON) and QG
• Avalanche Rated
• 2500V~ Electric

PDF File Details

Part number:

IXTP8N70X2M

Manufacturer:

IXYS

File Size:

193.77kb

Download:

📄 Datasheet

Description:

Power mosfet.

IXTP8N70X2M Application

• Applications
• Switch-Mode and Resonant-Mode Power Supplies
• DC-DC Converters
• PFC Circuits
• AC and DC Motor Driv
