IXTR120P20T - Power MOSFET

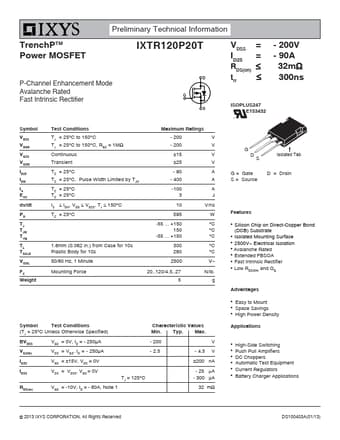

Preliminary Technical Information TrenchPTM Power MOSFET P-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Rectifier IXTR120P20T VDSS = ID25 = ≤RDS(on) trr ≤ - 200V - 90A 32mΩ 300ns ISOPLUS247 E153432 Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD VISOL FC Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C TC = 25°.

IXTR120P20T Features

* z Silicon Chip on Direct-Copper Bond (DCB) Substrate z Isolated Mounting Surface z 2500V~ Electrical Isolation z Avalanche Rated z Extended FBSOA z Fast Intrinsic Rectifier z Low RDS(ON) and QG Advantages z Easy to Mount z Space Savings z High Power Density Applications z High-Side Switching z Push
