IXTR140P10T Power MOSFET

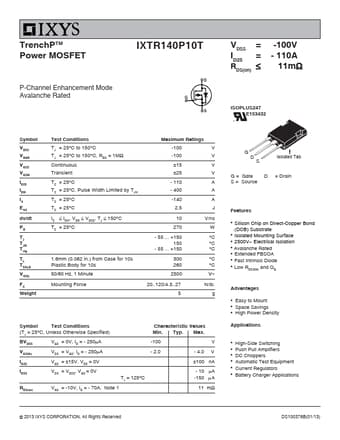

TrenchPTM Power MOSFET IXTR140P10T P-Channel Enhancement Mode Avalanche Rated VDSS = ID25 = ≤RDS(on) -100V - 110A 11mΩ ISOPLUS247 E153432 Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD VISOL FC Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C TC = 25°C 1.6mm (0.062 in.) from Case for 10s Plastic Body for 10s 50/60 Hz, 1 .

IXTR140P10T Features

* z Silicon Chip on Direct-Copper Bond (DCB) Substrate z Isolated Mounting Surface z 2500V~ Electrical Isolation z Avalanche Rated z Extended FBSOA z Fast Intrinsic Diode z Low RDS(ON) and QG Advantages z Easy to Mount z Space Savings z High Power Density Applications z High-Side Switching z Push Pull
