Part number:
IXXX300N60B3, IXXK300N60B3
Manufacturer:
IXYS
File Size:
215.73 KB
Description:
600v igbt.
Note:
This datasheet PDF includes multiple part numbers: IXXX300N60B3, IXXK300N60B3.
Please refer to the document for exact specifications by model.
IXXX300N60B3, IXXK300N60B3, 600V IGBT

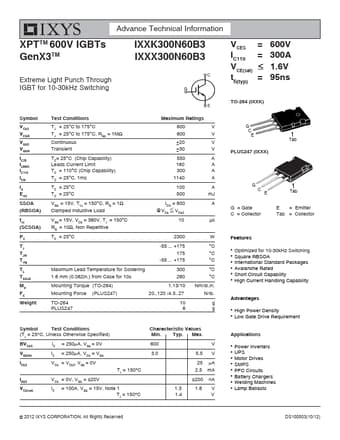

Advance Technical Information XPTTM 600V IGBTs GenX3TM Extreme Light Punch Through IGBT for 10-30kHz Switching IXXK300N60B3 IXXX300N60B3 VCES = IC110 = V ≤ CE(sat) tfi(typ) = 600V 300A 1.6V 95ns TO-264 (IXXK) Symbol VCES VCGR VGES VGEM IC25 ILRMS IC110 ICM IA EAS SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1MΩ Continuous Transient Maximum Ratings 600 V 600 V ±20 V ±30 V TC= 25°C (Chip Capability) Lead
IXXX300N60B3 Features
* z Optimized for 10-30kHz Switching z Square RBSOA z International Standard Packages z Avalanche Rated z Short Circuit Capability z High Current Handling Capability Advantages z High Power Density z Low Gate Drive Requirement Applications z Power Inverters z UPS z Motor Drives z SMPS z PFC Circuits z
