* z Optimized for 20-60kHz Switching z Square RBSOA z International Standard Packages z Avalanche Rated z Short Circuit Capability z High Current Handling Capability Advantages z High Power Density z Low Gate Drive Requirement Applications z Power Inverters z UPS z Motor Drives z SMPS z PFC Circuits z

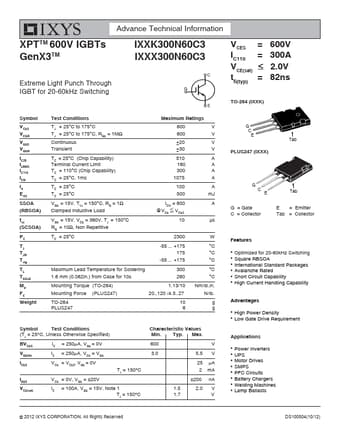

IXXX300N60C3 Datasheet (219.31 KB)
IXXX300N60C3
IXYS
219.31 KB
600v igbt.
Advance Technical Information
XPTTM 600V IGBTs GenX3TM
Extreme Light Punch Through IGBT for 20-60kHz Switching
IXXK300N60C3 IXXX300N60C3
VCES = IC1.
