Datasheet Details
Part number:
IXYH25N250CHV, IXYT25N250CHV
Manufacturer:
IXYS
File Size:
2.77 MB
Description:
High voltage igbt.
Note:
This datasheet PDF includes multiple part numbers: IXYH25N250CHV, IXYT25N250CHV.
Please refer to the document for exact specifications by model.
IXYH25N250CHV, IXYT25N250CHV, High Voltage IGBT

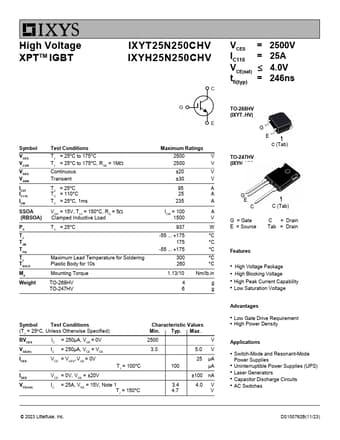

High Voltage XPTTM IGBT IXYT25N250CHV IXYH25N250CHV VCES = 2500V IC110 = 25A VCE(sat) 4.0V t = 246ns fi(typ) Symbol VCES V CGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) P C TJ TJM T stg TL T SOLD Md Weight Test Conditions TJ = 25°C to 175°C T J = 25°C to 175°C, R GE = 1M Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 150°C, RG = 5 Clamped Inductive Load T = 25°C C Maximum Lead Temperature for Soldering Plastic Body for 10s Mounting Torque TO-
IXYH25N250CHV Features
* High Voltage Package
* High Blocking Voltage
* High Peak Current Capability
* Low Saturation Voltage Advantages
* Low Gate Drive Requirement
* High Power Density Applications
* Switch-Mode and Resonant-Mode Power Supplies
* Uninterruptible Power Supplies (UPS)
