IXYH60N90C3 Datasheet - IXYS

IXYH60N90C3 - High-Speed IGBT

XPTTM 900V IGBT GenX3TM IXYH60N90C3 High-Speed IGBT for 20-50 kHz Switching Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient TC = 25°C (Chip Capability) TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 150°C, RG = 3 Clamped Inductive Load TC = 25°C Maximum Lead Temperature for Soldering 1.6 mm (0.062in.) from Case for 10s Mounting Torque Maximum Ratings 900 V 900 V ±.

IXYH60N90C3 Features

* Optimized for Low Switching Losses

* Square RBSOA

* Positive Thermal Coefficient of Vce(sat)

* International Standard Package Advantages

* High Power Density

* Low Gate Drive Requirement Applications

* High Frequency Power Inverters

* UPS

* Motor Drives

* SM

IXYH60N90C3-IXYS.pdf

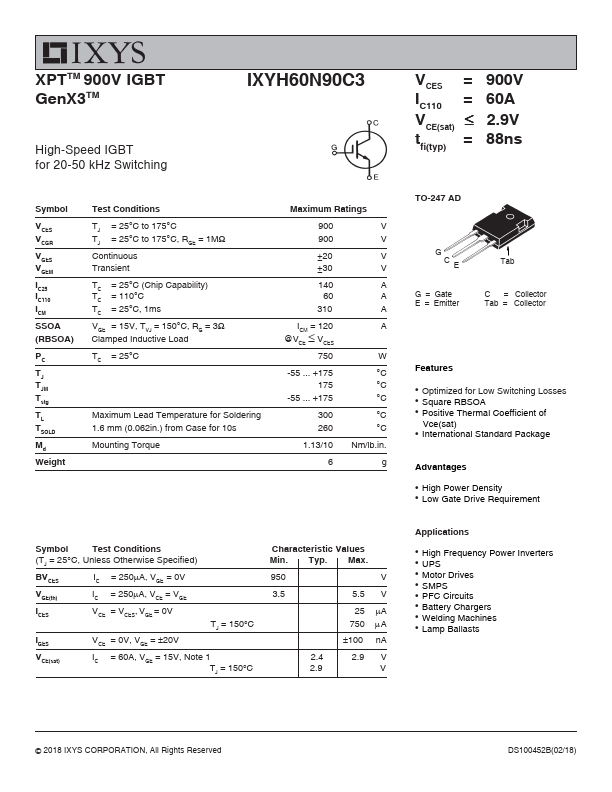

Preview of IXYH60N90C3 PDF

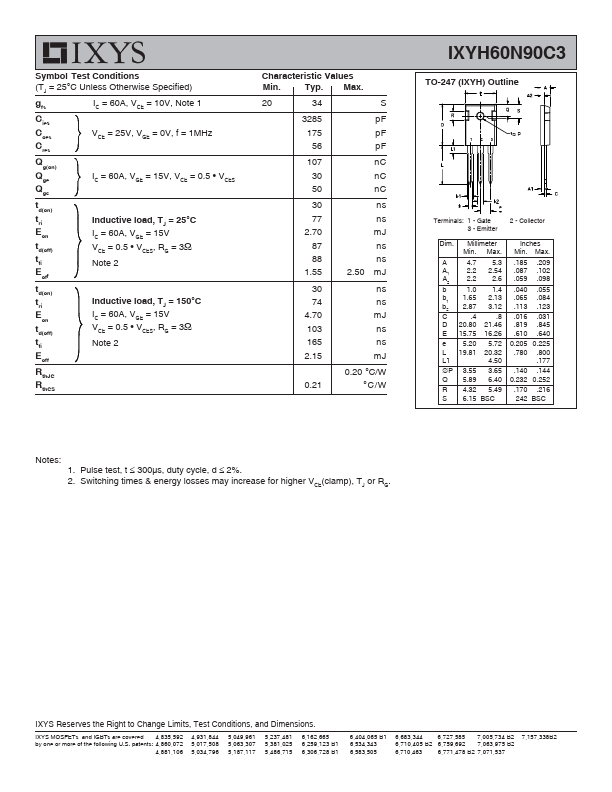

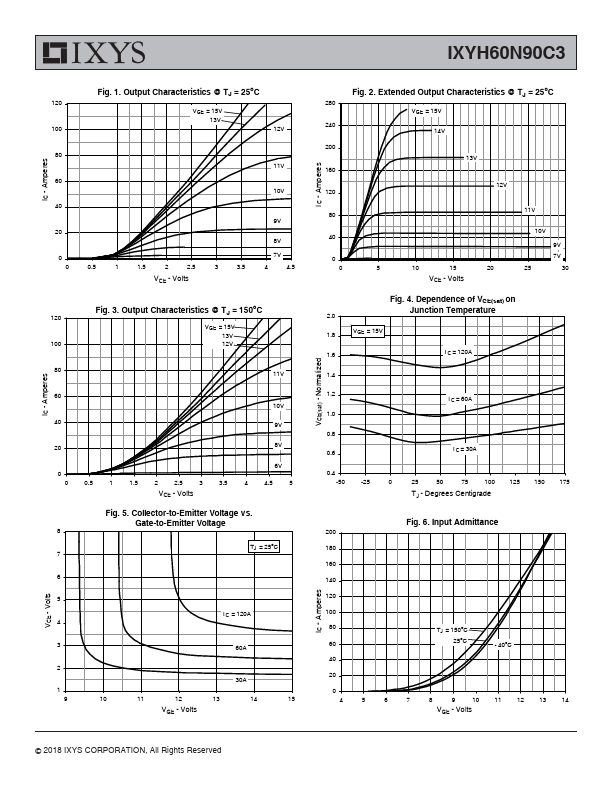

IXYH60N90C3 Datasheet Preview Page 2 IXYH60N90C3 Datasheet Preview Page 3
