IXYJ20N120C3D1 Datasheet - IXYS

IXYJ20N120C3D1, IGBT

1200V XPTTM IGBT GenX3TM w/ Diode (Electrically Isolated Tab) High-Speed IGBT for 20-50 kHz Switching IXYJ20N120C3D1 Symbol VCES VCGR VGES VGEM IC25.

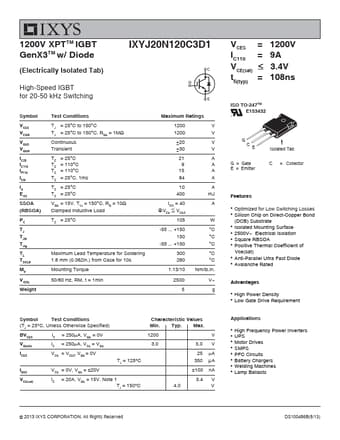

datasheet Preview Page 1 from Datasheet4u.com

IXYJ20N120C3D1-IXYS.pdf

IXYJ20N120C3D1 Datasheet Preview — Preview of IXYJ20N120C3D1 PDF

Datasheet Details

Part number:

IXYJ20N120C3D1

Manufacturer:

IXYS

File Size:

220.93 KB

Description:

IGBT

Features

* Optimized for Low Switching Losses
* Silicon Chip on Direct-Copper Bond (DCB) Substrate
* Isolated Mounting Surface
* 2500V~ Electrical Isolation
* Square RBSOA
* Positive Thermal Coefficient of Vce(sat)
* Anti-Parallel Ultra Fast Diode
* Avalanche Rated Advantages

Applications

* High Frequency Power Inverters
* UPS
* Motor Drives
* SMPS
* PFC Circuits
* Battery Chargers
* Welding Machines
* Lamp Ballasts © 2013 IXYS CORPORATION, All Rights Reserved DS100486B(8/13) Symbol Test Conditions (TJ = 25°C Unless Otherwise Specified) gfs IC = 2
