* Silicon Chip on Direct-Copper Bond (DCB) Substrate
* Isolated Mounting Surface
* 4500V~ Electrical Isolation
* High Voltage Package
* High Blocking Voltage
* High Peak Current Capability
* Low Saturation Voltage Advantages
* Low Gate Drive Requirement
* High Pow

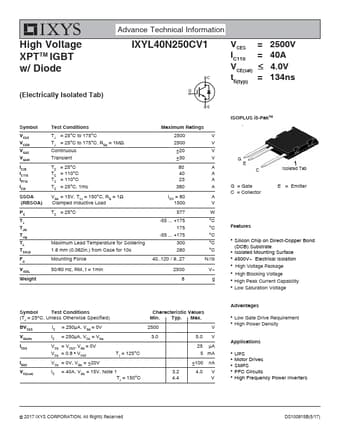

IXYL40N250CV1 Datasheet (236.05 KB)
IXYL40N250CV1
IXYS
236.05 KB
High voltage igbt.
High Voltage XPTTM IGBT w/ Diode
(Electrically Isolated Tab)
Advance Technical Information
IXYL40N250CV1
VCES = 2500V
IC110 = 40A
V CE(sat)
.
