* High Voltage Packages
* High Blocking Voltage
* High Peak Current Capability
* Low Saturation Voltage Advantages
* Low Gate Drive Requirement
* High Power Density Applications
* Switch-Mode and Resonant-Mode Power Supplies
* Uninterruptible Power Supplies (UPS)
IXYT12N250CV1HV Datasheet (275.19 KB)
IXYT12N250CV1HV
IXYS
275.19 KB
High voltage igbt.

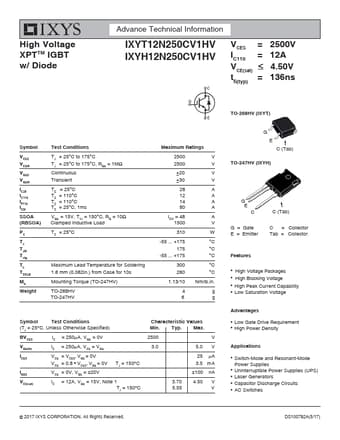

High Voltage XPTTM IGBT w/ Diode
Advance Technical Information
IXYT12N250CV1HV IXYH12N250CV1HV
VCES = 2500V
IC110 = 12A
V CE(sat)
4.50V
t.
