IXYT30N450HV IGBT

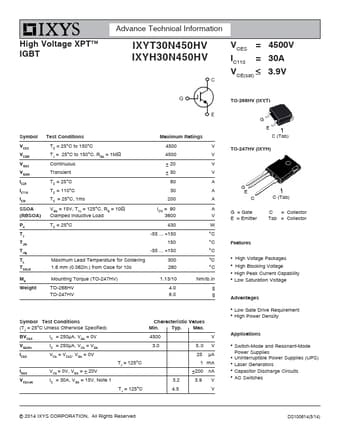

High Voltage XPTTM IGBT Advance Technical Information IXYT30N450HV IXYH30N450HV VCES = IC110 = VCE(sat)  4500V 30A 3.9V Symbol Test Conditions Maximum Ratings VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) TC = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1M Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 125°C, RG = 10 Clamped Inductive Load 4500 4500 ± 20 ± 30 60 30 200 ICM = 90 3600 V V V V A A A A V PC TJ TJM Tstg TL TSOLD TC = 25°C 430 -55 +150 150 -55.

IXYT30N450HV Features

* High Voltage Packages

* High Blocking Voltage

* High Peak Current Capability

* Low Saturation Voltage Advantages

* Low Gate Drive Requirement

* High Power Density Applications

* Switch-Mode and Resonant-Mode Power Supplies

* Uninterruptible Power Supplies (UPS)

IXYT30N450HV Datasheet (240.39 KB)
