2N3054A, 2N3054 Datasheet - Inchange Semiconductor

2N3054A - Silicon NPN Power Transistors

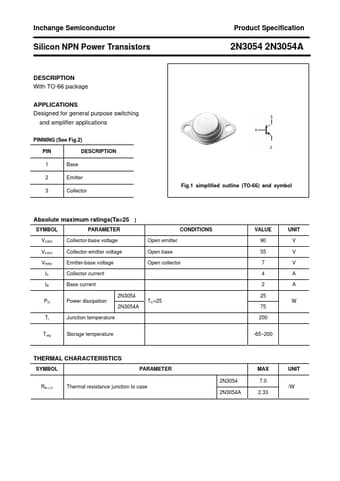

¡¤With TO-66 package APPLICATIONS ¡¤Designed for general purpose switching and amplifier applications PINNING (See Fig.2) PIN 1 2 3 Base Emitter Fig.1 simplified outline (TO-66) and symbol Collector DESCRIPTION Absolute maximum ratings(Ta=25¡æ ) SYMBOL VCBO VCEO VEBO IC IB PD Tj Tstg PARAMETER Coll

2N3054_InchangeSemiconductor.pdf

This datasheet PDF includes multiple part numbers: 2N3054A, 2N3054. Please refer to the document for exact specifications by model.
2N3054A Datasheet Preview Page 2 2N3054A Datasheet Preview Page 3

Datasheet Details

Part number:

2N3054A, 2N3054

Manufacturer:

Inchange Semiconductor

File Size:

141.39 KB

Description:

Silicon npn power transistors.

Note:

This datasheet PDF includes multiple part numbers: 2N3054A, 2N3054.
Please refer to the document for exact specifications by model.
