2SA1079 - POWER TRANSISTOR

The 2SA1079 by Inchange Semiconductor is a POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

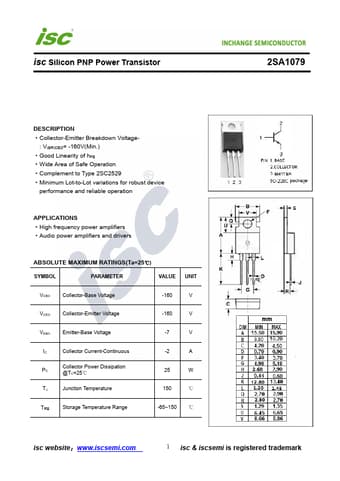

Official preview page of the 2SA1079 POWER TRANSISTOR datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SA1079
Manufacturer Inchange Semiconductor
File Size 215.05 KB
Description POWER TRANSISTOR
Datasheet download datasheet 2SA1079_InchangeSemiconductor.pdf
Additional preview pages of the 2SA1079 datasheet.

2SA1079 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= -160V(Min.) Good Linearity of hFE Wide Area of Safe Operation Complement to Type 2SC2529 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS High frequency power amplifiers Audio power amplifiers and drivers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -160 V VCEO Collector-Emitter Voltage -160 V VEBO Emitter-Bas
