2SA1102, POWER TRANSISTOR

isc Silicon PNP Power Transistor 2SA1102 .
Collector-Emitter Breakdown Voltage- V(BR)CEO= -80V(Min). Good Linearity of hFE. Minimum Lot-to-Lot variations for robust device performa.

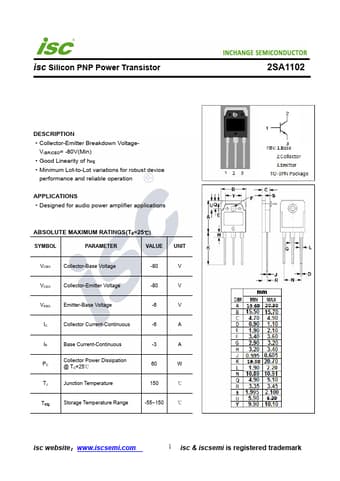

datasheet Preview Page 1 from Datasheet4u.com

2SA1102_InchangeSemiconductor.pdf

2SA1102 Datasheet Preview — Preview of 2SA1102 PDF

Datasheet Details

Part number:

2SA1102

Manufacturer:

Inchange Semiconductor

File Size:

221.81 KB

Description:

POWER TRANSISTOR

Applications

* Designed for audio power amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -80 V VCEO Collector-Emitter Voltage -80 V VEBO Emitter-Base Voltage -6 V IC Collector Current-Continuous -6 A IB Base Current-Continuo
