2SA1746 - POWER TRANSISTOR

2SA1746 Description

isc Silicon PNP Power Transistor 2SA1746 .
Low Collector Saturation Voltage :VCE(sat)= -0. Good Linearity of hFE. Minimum Lot-to-Lot variations for robust device.

2SA1746 Applications

* Designed for chopper regulator, switch and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -70 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -6 V IC Collector Current-Continuous -12 A

📥 Download Datasheet

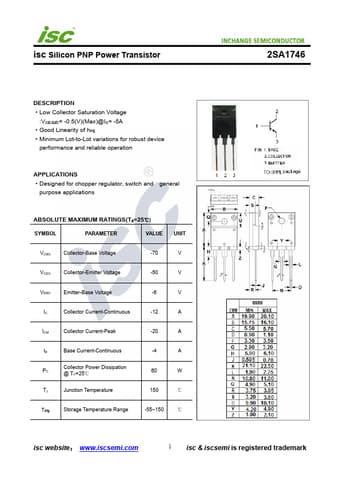

Preview of 2SA1746 PDF
